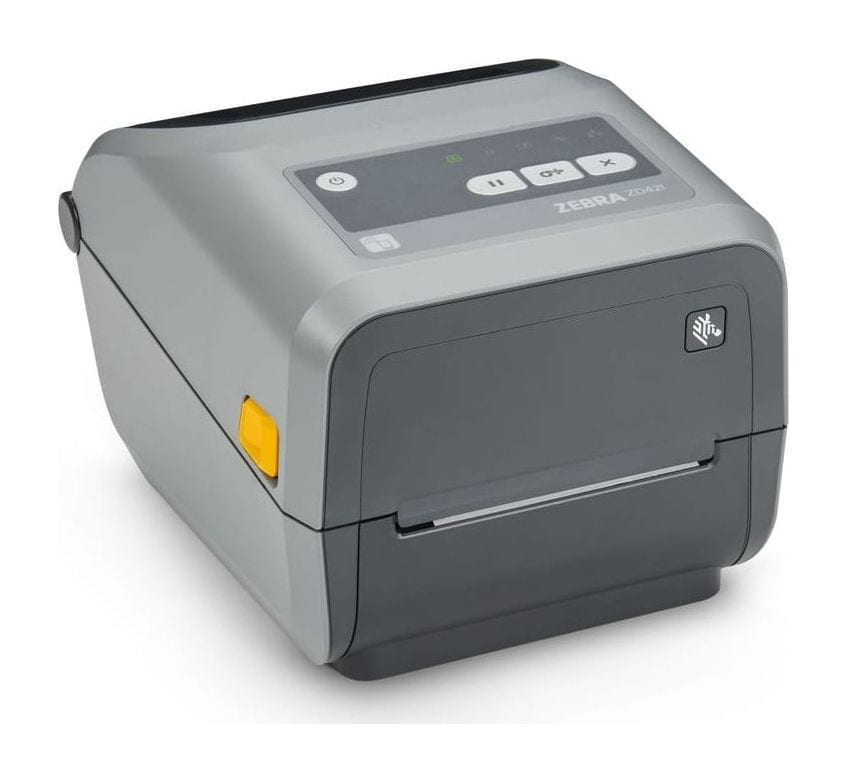

Zebra · Desktop barcode label printer
A 4-inch desktop label printer in direct thermal, thermal transfer and ribbon-cartridge versions, for shipping, product, shelf and hospital labels where a GK420 or ZD420 used to sit.
ZD421 price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra ZD421
Why the ZD421
The ZD421 is Zebra's current 4-inch desktop in the ZD400 Series and the model Zebra names on its GK420 and ZD420 support pages as their replacement. It runs Link-OS and comes in direct thermal, thermal transfer (ribbon roll) and thermal transfer (ribbon cartridge) versions.
Direct thermal needs no ribbon. The thermal transfer roll model takes 300 m or 74 m ribbons. The cartridge model takes a 74 m ribbon cartridge that loads in one direction only, which makes ribbon changes simpler.
USB 2.0 and USB Host are standard, with Bluetooth Low Energy for the setup app. Ethernet 10/100, Wi-Fi 6 with Bluetooth 5.3 and Wi-Fi 5 with Bluetooth 4.1 can be fitted at the factory or in the field, and RS-232 serial in the field, so a USB printer bought today can join the network later.
It understands ZPL II, EPL 2, XML, ZBI and PDF Direct, the same Zebra languages used by GK420 and ZD420 fleets. Test your existing formats once before you switch the whole fleet.
The ZD421-HC has a white housing, disinfectant-ready plastics, a sealed button panel, UV-resistant housing and an IEC 60601-1 certified power supply, for specimen, pharmacy and wristband labels.
Rolls up to 127 mm outside diameter on 12.7 mm or 25.4 mm cores (38.1, 50.8 and 76.2 mm with adapters). It prints labels, tags, receipt paper and wristbands, with a field-fit peeler or cutter.
The ZD421 works with Zebra DNA (formerly Print DNA). PrintSecure sets up secure connections, and Printer Profile Manager Enterprise, a separately licensed tool, manages a networked fleet from one place. ZebraDesigner Essentials label software is a free download.
Used in
For buyers in India
These are the points buyers in India ask us about the ZD421. Mention the ones that apply to you when you request a quote.
The ZD421 prints a 4 × 6 inch (101.6 × 152.4 mm) courier label in about one second at 152 mm/s (6 ips). It prints up to 104 mm wide at 203 dpi and takes direct thermal media up to 108 mm wide, so the label fits. A full 127 mm roll on a 25.4 mm core holds about 64 m even at the thickest 0.19 mm media, or roughly 410 labels with a 3 mm gap.
The ZD421 prints MRP and net-quantity text at 203 or 300 dpi; check the height of the printed digit, not the font size setting. Ask us to set up your label format and print test labels on your roll.
To print Hindi, Tamil or another Indian script on the ZD421, load a licensed font for that script on the printer, or have the label software send the text as an image. Zebra describes the ZD421 as Unicode compliant with native OpenType font support. Its ZPL guide documents character shaping (^PA) and complex text layout (^TB) on firmware V60.14 or later, which scripts such as Devanagari need. Zebra's international font packs list Arabic, Thai, Chinese, Japanese and Korean, but no Indian script. Approve a printed proof before rollout. Ask us to set up your label format and print test labels on your roll.
Use the ZD421-HC for patient wristbands as well as specimen and pharmacy labels. Its 4-inch print width also covers larger pharmacy labels that a 2-inch printer cannot.
Run the ZD421 in a room under 41 °C, and use a stabiliser or online UPS where mains runs high. Zebra rates it to run between 4.4 °C and 41 °C, on a supply rated 100-240 VAC, 50-60 Hz.
Specifications
| General | |
|---|---|
| Versions | Direct thermal; thermal transfer (ribbon roll); thermal transfer (ribbon cartridge); healthcare model ZD421-HC |
| Operating system | Link-OS |
| Memory | 512 MB Flash, 256 MB SDRAM (64 MB user non-volatile, 8 MB user SDRAM) |
| Printer languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Software | Zebra DNA: PrintSecure; Printer Profile Manager Enterprise (licensed separately); printer setup app over Bluetooth Low Energy; ZebraDesigner Essentials (free download) |
| Printing | |
| Resolution | 203 dpi (8 dots/mm); 300 dpi (12 dots/mm) optional |
| Maximum print width | 104 mm (4.09 in.) at 203 dpi; 106 mm (4.16 in.) at 300 dpi (cartridge model: 104 mm at both) |
| Maximum print speed | 152 mm/s (6 ips) at 203 dpi; 102 mm/s (4 ips) at 300 dpi |
| Media sensors | Full-width movable reflective/black-mark sensor; multi-position transmissive/gap sensor |
| Fonts | 16 expandable ZPL II bitmap fonts, 2 scalable ZPL fonts, 5 expandable EPL2 fonts, native OpenType support |
| Barcodes | 1D: Code 11, 39, 93, 128, ISBT-128, UPC-A/E, EAN-8/13, Codabar, MSI, Plessey, 2-of-5 and others. 2D: PDF417, MicroPDF, Data Matrix, QR Code, Aztec, MaxiCode, Codablock, Code 49 |
| Media | |
| Media width | 15-108 mm (direct thermal); 15-112 mm (ribbon roll); 15-118 mm (cartridge) |
| Label length | 6.35-991 mm (0.25-39 in.) |
| Maximum roll diameter | 127 mm (5 in.) outside diameter |
| Core size | 12.7 mm and 25.4 mm standard; 38.1, 50.8 and 76.2 mm with optional adapters |
| Media thickness | 0.08-0.19 mm |
| Media types | Roll or fan-fold; die-cut or continuous labels with or without black mark; tags; receipt paper; wristbands |
| Ribbon (roll model) | 300 m (66 mm OD, 25.4 mm core, 1:4 media-to-ribbon) or 74 m (34 mm OD, 12.7 mm core, 1:1); width 33.8-109.2 mm |
| Ribbon (cartridge model) | 74 m cartridge, 109.2 mm wide |
| Media handling | Tear-off standard; dispenser/peeler with label-present sensor and cutter optional (field installable). The cutter cuts continuous paper, linered label and tag stock up to 0.19 mm, not through labels and liner |
| Connectivity | |
| Standard | USB 2.0, USB Host; Bluetooth Low Energy for the Zebra printer setup app only |
| Optional | Factory or field installed: Ethernet 10/100; Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (MIMO factory, SISO field); Wi-Fi 5 (802.11ac) with Bluetooth 4.1. Field installed: RS-232 serial (auto-sensing, DB-9) |
| Mobile and desktop OS | Windows, Android, iOS |
| Physical and environment | |
| Dimensions (L × W × H) | Direct thermal 220.8 × 177.5 × 150.7 mm; ribbon roll 267 × 202 × 189 mm; cartridge 254 × 202 × 177 mm |
| Weight | Direct thermal 1.35 kg; ribbon roll 2.05 kg; cartridge 2.3 kg |
| Operating temperature | 4.4 °C to 41 °C |
| Storage temperature | -40 °C to 60 °C |
| Humidity | 10-90% operating, 5-95% storage, non-condensing |
| Power | Auto-detecting 100-240 VAC, 50-60 Hz; ENERGY STAR; optional 2,750 mAh battery |
| Healthcare model (ZD421-HC) | White housing, disinfectant-ready plastics, sealed buttons, UV-resistant housing, IEC 60601-1 certified power supply |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
Ask for labels, ribbons and any connectivity module in the same quotation.
Specifications from Zebra's published documents, last checked 13 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Zebra ZD421 | Zebra ZD230 | Zebra ZD621 |
|---|---|---|---|
| Resolution | 203 or 300 dpi | 203 dpi | 203 or 300 dpi |
| Maximum print speed | 152 mm/s (6 ips) at 203 dpi | 152 mm/s (6 ips) | 203 mm/s (8 ips) at 203 dpi |
| Ribbon | 300 m or 74 m roll; 74 m cartridge | 300 m or 74 m roll (ZD230t) | 300 m or 74 m roll |
| Standard ports | USB 2.0, USB Host | USB 2.0 | Ethernet, USB 2.0, USB Host, serial |
| Memory | 512 MB Flash, 256 MB SDRAM | 128 MB Flash, 128 MB SDRAM | 512 MB Flash, 256 MB SDRAM |
| Best for | Mid-range desktop labelling with room to add Wi-Fi or Ethernet | Basic 203 dpi labelling | Premium desktop with Ethernet and serial built in |
If your job differs from what the ZD421 is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Part numbers
Quote the part number for your ZD421 in your enquiry and we confirm the exact part. These are Zebra's own codes; if you do not have yours, send a photo of the device's rating label.
| Part number | What it is | Ask about this part |
|---|---|---|
| P1112640-019 | Printhead, 203 dpi, ZD421 direct thermal | Ask on WhatsApp about P1112640-019 (opens in a new tab) |
| P1112640-020 | Printhead, 300 dpi, ZD421 direct thermal | Ask on WhatsApp about P1112640-020 (opens in a new tab) |
| P1112640-026 | Printhead, 203 dpi, ZD421 direct thermal healthcare (white) | Ask on WhatsApp about P1112640-026 (opens in a new tab) |
| P1112640-027 | Printhead, 300 dpi, ZD421 direct thermal healthcare (white) | Ask on WhatsApp about P1112640-027 (opens in a new tab) |
| P1112640-218 | Printhead, 203 dpi, ZD421 thermal transfer | Ask on WhatsApp about P1112640-218 (opens in a new tab) |
| P1112640-219 | Printhead, 300 dpi, ZD421 thermal transfer | Ask on WhatsApp about P1112640-219 (opens in a new tab) |
| P1116110-009 | Printhead, 203 dpi, ZD421 ribbon cartridge | Ask on WhatsApp about P1116110-009 (opens in a new tab) |
| P1116110-010 | Printhead, 300 dpi, ZD421 ribbon cartridge | Ask on WhatsApp about P1116110-010 (opens in a new tab) |
| Part number | What it is | Ask about this part |
|---|---|---|
| P1112640-217 | Platen Roller 300dpi | Ask on WhatsApp about P1112640-217 (opens in a new tab) |
| Part number | What it is | Ask about this part |
|---|---|---|
| P1112640-015 | Ethernet Module | Ask on WhatsApp about P1112640-015 (opens in a new tab) |
| P1112640-017C | Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, for all countries except USA, Canada and Japan | Ask on WhatsApp about P1112640-017C (opens in a new tab) |
| P1112640-239C | WiFi 802.11ac Wireless Module for all countries except USA, Canada and Japan | Ask on WhatsApp about P1112640-239C (opens in a new tab) |
Printheads for every printer we sell · Is it the printhead? Symptoms, tests and when to replace
Part numbers as published by Zebra, checked in Zebra's published documents on 10 October 2026. Parts and printer configurations available in India can change; we confirm the exact code and the delivery time in your quotation. About our product information
Downloads
Questions buyers ask
The ZD421 price depends on the resolution you choose (203 or 300 dpi), the options you add and the quantity. We can quote the labels and ribbon with it. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Zebra's support pages show that the GK420 and the ZD420 were last sold in Asia-Pacific on 31 December 2021 and that their support ended there on 28 February 2025. Both pages name the ZD421 as the replacement. The ZD421 keeps the 4-inch width and the ZPL and EPL languages, so most label formats carry over. Include one of your current labels when you ask for a quote.
Direct thermal prints on heat-sensitive labels and needs no ribbon, which suits shipping labels and receipts. The thermal transfer models print through a ribbon, which lets you use a wider range of label materials. The roll model takes 300 m or 74 m ribbons; the cartridge model takes a 74 m cartridge that loads in one direction only. Describe your labels when you ask for a quote.
Yes. Zebra lists a ZD421-HC healthcare model. It has a white housing, plastics designed for disinfectant wipes, a sealed button panel, a UV-resistant housing and an IEC 60601-1 certified power supply. It prints specimen labels, pharmacy labels and wristbands. If you print wristbands, mention the band type when you ask for a quote.
Not out of the box. The standard printer connects over USB, and its Bluetooth Low Energy is only for Zebra's setup app. Ethernet or Wi-Fi can be fitted at the factory or added later as a field-installable module, and RS-232 serial in the field, so a USB printer can join your network when you need it.
The direct thermal model. It needs no ribbon, prints up to 104 mm wide and takes media up to 108 mm wide, so a 4 × 6 inch (101.6 × 152.4 mm) shipping label fits. If the same printer must also make long-life product or asset labels, choose a thermal transfer model, which prints in both modes.
Yes. We install the ZD421 at your site, connect it so your ERP, warehouse or billing software prints to it (our own warehouse management system included) and train the people who use it. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send your label size, how many labels you print a day and the software you print from; we reply with a written quotation.
