Faster than the ZD220
The ZD230 prints at up to 152 mm/s (6 ips); the ZD220 tops out at 102 mm/s (4 ips).
IIoT
Browse IIoT
IIoT
Browse IIoT

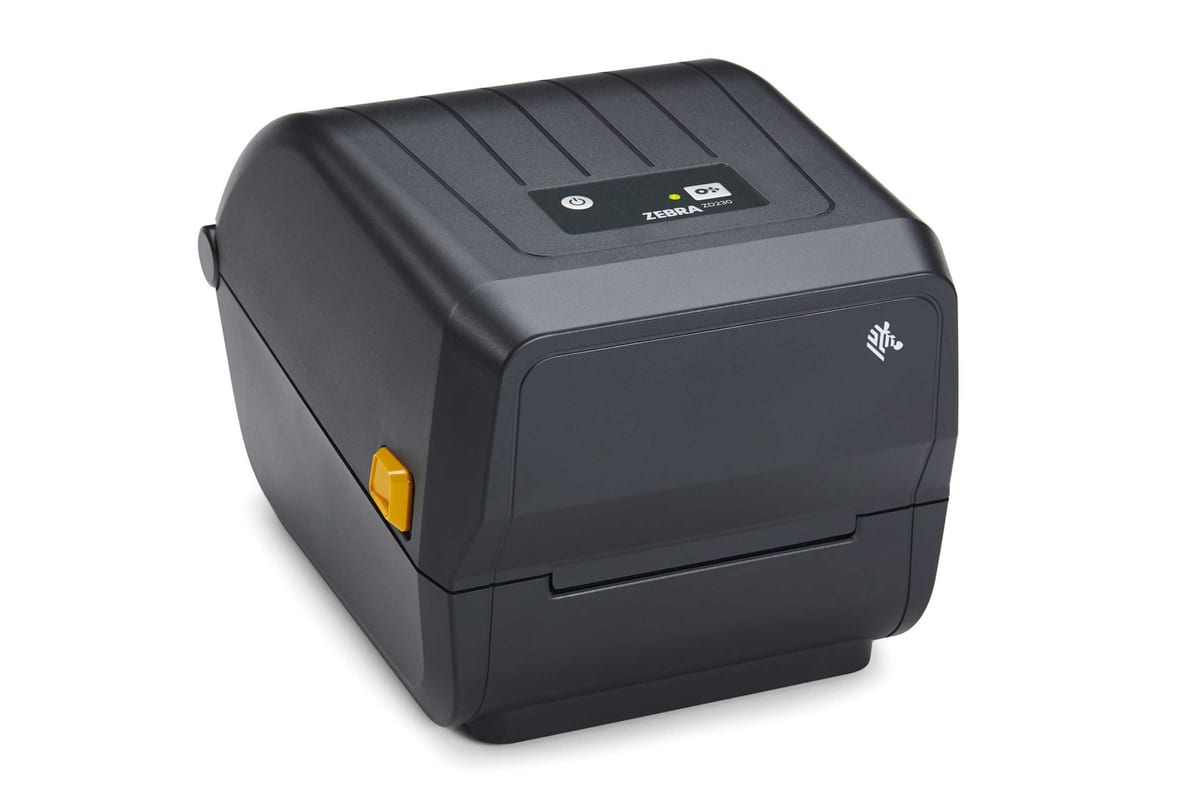

Zebra · Desktop barcode label printer
A 4-inch value desktop label printer, as Zebra's standard ZD230 or the Asia-Pacific ZD230TA / ZD230DA, in direct thermal and thermal transfer versions, for shops, dispatch desks and small warehouses replacing a GC420 or GT800.
ZD230 price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra ZD230
Why the ZD230
The ZD230 is the faster model in Zebra's ZD200 Series, next to the ZD220 we already list. Zebra names the ZD200 Series as the successor to the GC420, and lists the ZD220 among the GT800 replacements. Two versions are available in India: the standard ZD230, with factory network options, and the ZD230TA (thermal transfer) and ZD230DA (direct thermal), USB-only versions with less memory and an optional 300 dpi printhead.
The ZD230 prints at up to 152 mm/s (6 ips); the ZD220 tops out at 102 mm/s (4 ips).
USB 2.0 is standard. Zebra builds the ZD230 at the factory with Ethernet 10/100, Bluetooth 4.1, or 802.11ac Wi-Fi with Bluetooth 4.1, so decide on the connection before you place the order. The ZD230TA and ZD230DA connect over USB only, with an optional USB-to-serial cable.
It accepts ZPL II and EPL2, plus EPL1 line mode, so formats written for older Zebra desktops such as the GC420 usually need no rework. Test one label first.
The OpenACCESS lid opens for media changes. A single status light and a single feed/pause button cover daily use, and a feed slot takes fan-fold labels.
The ZD230t takes 300 m ribbons (1:4 media-to-ribbon) or 74 m ribbons (1:1), from 33.8 mm to 109.2 mm wide. Longer ribbons mean fewer changes.
Rolls up to 127 mm outside diameter on 12.7 mm or 25.4 mm cores, media 25.4-112 mm wide. It prints labels, tags, receipt paper and Z-Band wristbands, and Zebra offers a factory-fitted peeler or cutter.
Used in
For buyers in India
These are the points buyers in India ask us about the ZD230. Mention the ones that apply to you when you request a quote.
The ZD230 takes a 4 × 6 inch (101.6 × 152.4 mm) courier label: it prints up to 104 mm wide on media up to 112 mm. Its speed is programmable: one 152.4 mm label takes about 1.5 s at 102 mm/s (4 ips) and about 1.0 s at 152 mm/s (6 ips). The direct thermal model needs no ribbon, so a dispatch desk stocks only labels.
On the 203 dpi ZD230, set EAN-13 bars to 3 dots wide; 2-dot bars print the code too small. GS1 India issues the 890-prefix EAN-13 numbers used on Indian retail goods.
The ZD230 prints at 8 dots per mm. For retail packs, ask us to set up the MRP and net-quantity lines in your label format and print test labels on your roll.
For product names in Hindi, Tamil or another Indian language, plan for label software that sends that text to the ZD230 as an image, and approve a printed proof before rollout. Zebra lists the ZD230 as Unicode compliant for multi-language printing, with native OpenType font support and 16 bitmap and two scalable ZPL fonts on board. But Zebra lists no Indian-script font for it, and its international font packs cover Arabic, Thai, Chinese, Japanese and Korean. Ask us to set up your label format and print test labels on your roll.
Keep the ZD230 out of hot, unventilated stockrooms in summer, and use a UPS or stabiliser where mains runs above 240 V. Zebra rates it to run from 4.4 °C to 41 °C, and its external supply takes 100-240 VAC, 50-60 Hz and gives the printer 24 VDC.
Specifications
| General | |
|---|---|
| Versions | Direct thermal; thermal transfer (ZD230t) |
| Operating system | Link-OS Basic |
| Memory | ZD230: 128 MB Flash, 128 MB SDRAM (50 MB user non-volatile, 8 MB user SDRAM); ZD230TA/DA: 8 MB Flash, 16 MB SDRAM (2 MB user non-volatile, 2 MB user SDRAM) |
| Printer languages | ZPL II, EPL2, XML; EPL1 line mode |
| Software | Zebra DNA (formerly Print DNA) Basic: Zebra Setup Utilities, ZebraDesigner Essentials (free download), printer emulations; Windows drivers |
| Printing | |
| Resolution | 203 dpi (8 dots/mm); 300 dpi (12 dots/mm) optional on the ZD230TA/DA |
| Maximum print width | 104 mm (4.09 in.) |
| Print speed | Programmable, 102 mm/s (4 ips) or 152 mm/s (6 ips) maximum |
| Maximum print length | 991 mm (39 in.) |
| Sensors | Movable black-mark sensor (limited range, centre to left side); fixed off-centre gap sensor; head-up sensor |
| Fonts | 16 expandable ZPL II bitmap fonts, 2 scalable ZPL fonts, 5 EPL2 fonts; native OpenType support; Unicode for multi-language printing |
| Barcodes | 1D: Code 11, 39, 93, 128, UPC-A/E, EAN-8/13/14, GS1 DataBar, Codabar, MSI, Plessey, 2-of-5 and others. 2D: PDF417, MicroPDF417, Data Matrix, QR Code, Aztec, MaxiCode, Codablock, Code 49 |
| Media | |
| Media width | 25.4-112 mm (1.00-4.40 in.) |
| Label length | 25.4-991 mm (1-39 in.) |
| Maximum roll diameter | 127 mm (5 in.) outside diameter |
| Core size | 12.7 mm and 25.4 mm standard; 38.1 mm (1.5 in.) with an optional adapter |
| Media thickness | 0.08-0.19 mm (tear-off mode) |
| Media sensing | Movable black mark sensor (centre to left side); fixed off-centre gap sensor |
| Media types | Roll or fan-fold; die-cut or continuous labels and tags; continuous receipt paper (direct thermal); wristbands (Z-Band 4000) |
| Ribbon (ZD230t only) | 300 m (66 mm OD, 25.4 mm core, 1:4) or 74 m (34 mm OD, 12.7 mm core, 1:1); width 33.8-109.2 mm |
| Media handling | Tear-off standard; peeler or cutter as factory-installed options |
| Connectivity | |
| Standard | USB 2.0 (Type B) |
| Factory-installed options | USB + Ethernet 10/100; USB + Bluetooth 4.1; USB + 802.11ac Wi-Fi and Bluetooth 4.1 (Bluetooth is MFi-certified for Apple devices) |
| ZD230TA / ZD230DA | Asia-Pacific versions: ZD230TA thermal transfer, ZD230DA direct thermal. 203 dpi standard, 300 dpi optional; up to 152 mm/s (6 ips) at 203 dpi and 127 mm/s (5 ips) at 300 dpi. 8 MB Flash, 16 MB SDRAM. USB 2.0 only (USB-to-serial cable optional). Media 25.4-112 mm wide, tear-off. |
| Physical and environment | |
| Dimensions (L × W × H) | Thermal transfer 267 × 197 × 191 mm; direct thermal 220 × 176 × 151 mm |
| Weight | Direct thermal 1.1 kg; thermal transfer 1.7 kg |
| Operating temperature | 4.4 °C to 41 °C |
| Storage temperature | -40 °C to 60 °C |
| Humidity | 10-90% operating, 5-95% storage, non-condensing |
| Power | External auto-ranging supply (PFC compliant), 100-240 VAC, 50-60 Hz; 24 VDC output; ENERGY STAR |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
Ask for labels, ribbons and core adapters in the same quotation.
Specifications from Zebra's published documents, last checked 13 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Zebra ZD230 (standard) | Zebra ZD230TA / ZD230DA | Zebra ZD220 | Zebra ZD421 |
|---|---|---|---|---|
| Resolution | 203 dpi | 203 dpi; 300 dpi option | 203 dpi | 203 or 300 dpi |
| Maximum print speed | 152 mm/s (6 ips) | 152 mm/s (6 ips) at 203 dpi | 102 mm/s (4 ips) | 152 mm/s (6 ips) at 203 dpi |
| Memory | 128 MB Flash, 128 MB SDRAM | 8 MB Flash, 16 MB SDRAM | 128 MB Flash, 128 MB SDRAM | 512 MB Flash, 256 MB SDRAM |
| Connectivity | USB; Ethernet, Bluetooth or Wi-Fi + Bluetooth as factory options | USB (USB-to-serial cable optional) | USB | USB, USB Host, BLE; Ethernet, Wi-Fi, serial fit in the field |
| Best for | Value labelling with an optional network connection | USB labelling, or 300 dpi in the ZD200 range | Basic USB labelling at one desk | 300 dpi labels or adding a network later |
If your job differs from what the ZD230 is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Part numbers
Quote the part number for your ZD230 in your enquiry and we confirm the exact part. These are Zebra's own codes; if you do not have yours, send a photo of the device's rating label.
| Part number | What it is | Ask about this part |
|---|---|---|
| P1115689 | Printhead, 203 dpi, ZD220/ZD230 direct thermal | Ask on WhatsApp about P1115689 (opens in a new tab) |
| P1115690 | Printhead | Ask on WhatsApp about P1115690 (opens in a new tab) |
Printheads for every printer we sell · Is it the printhead? Symptoms, tests and when to replace
Part numbers as published by Zebra, checked in Zebra's published documents on 10 October 2026. Parts and printer configurations available in India can change; we confirm the exact code and the delivery time in your quotation. About our product information
Downloads
Questions buyers ask
The ZD230 price depends on the resolution you choose (203 or 300 dpi), the options you add and the quantity. We can quote the labels and ribbon with it. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Zebra's support pages show the GC420 last sold in April 2020 and its support ended on 30 June 2023; Zebra names the ZD200 Series (ZD220 and ZD230) as its successor. For the GT800, Zebra lists the ZD220, ZD421 and ZD621. For the same 4-inch, 203 dpi labels at up to 6 ips, we suggest the ZD230 as the closest match. Include a sample label when you ask for a quote.
Choose the standard ZD230 if the printer must join your network: Zebra builds it with Ethernet, Bluetooth or Wi-Fi, and it has 128 MB of Flash for stored formats and fonts. The ZD230TA (thermal transfer) and ZD230DA (direct thermal) are USB-only with 8 MB of Flash, but offer a 300 dpi printhead for small text and dense codes. Both print 104 mm wide at up to 152 mm/s at 203 dpi.
Both are 4-inch, 203 dpi printers with 128 MB Flash. The ZD220 prints at up to 102 mm/s (4 ips) over USB only. The ZD230 prints at up to 152 mm/s (6 ips) and can be ordered with Ethernet, Bluetooth or Wi-Fi. Choose the ZD230 if several people share the printer or if it must sit on the network.
Zebra lists the ZD230's Ethernet, Bluetooth 4.1 and Wi-Fi with Bluetooth options as factory-installed, so plan the connection before you order. If you may need a network later and want to add it in the field, look at the ZD421, where Zebra offers Ethernet, Wi-Fi and serial as field-installable modules. The ZD230TA and ZD230DA have no network option.
Yes. Zebra lists continuous direct thermal receipt paper and Z-Band 4000 wristband stock among the ZD230's media, along with die-cut and continuous labels and tags. Media can be 25.4 mm to 112 mm wide, on rolls up to 127 mm across or fan-folded. Give the label size and material when you ask for a quote.
Yes. The ZD230 prints at 8 dots per mm, and it prints EAN-13 and QR Code on the same label, on labels 25.4 mm to 112 mm wide. Tell us your pack size and the declarations you print, and we set up your label format and print test labels on your roll.
Yes. We install the ZD230 at your site, connect it so your ERP, warehouse or billing software prints to it (our own warehouse management system included) and train the people who use it. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send your label size, how many labels you print a day and the software you print from; we reply with a written quotation.
