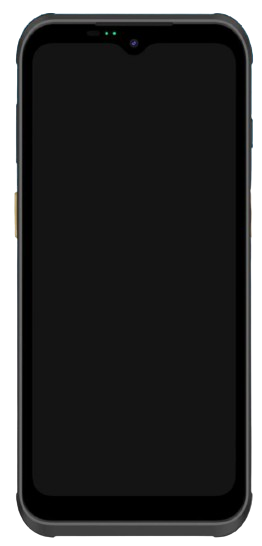

TVS-E HS65 , a versatile mobile computer engineered to enhance productivity and streamline workflows
across various industries. This device combines powerful processing, extensive connectivity,
and a rugged design to deliver exceptional value and performance. Get the essential features
your team needs to execute tasks with speed and precision, all in one dependable and future-ready
package.
Enterprise-Class Android Performance Built for the Future
Empower your workforce with the TVS-E HS65 — a future-ready, Android 14-powered mobile computer designed to elevate productivity across a wide range of industries. With an optional upgrade path to Android 16, a robust octa-core processor, and flexible memory configurations, you get the scalability and performance your business demands.
Exceptional Data Capture with Professional-Grade Scanning
Speed through data collection with a high-performance scanner that supports both 1D and 2D barcodes. Equipped with a laser crosshair aimer and wide scanning angles, the HS65 ensures fast, accurate reads even in challenging conditions — helping your team complete tasks faster and with fewer errors.
Optimized Touch Experience with Advanced Display Technology
The large 6.5-inch industrial-grade capacitive screen offers multi-touch capabilities and is engineered for use in harsh conditions — including wet hands and gloves. Whether you're indoors or outside, the 450-nit screen delivers visibility and responsiveness your team can rely on.
Versatile Connectivity Across Every Workflow
Stay connected with support for global 4G LTE bands, dual-band Wi-Fi, Bluetooth 5.2, and GPS with multiple satellite systems including Glonass, Beidou, and Galileo. No matter where the job takes your team, the HS65 keeps them reliably connected.
All-Day Power with Swappable Battery Design
Power through demanding shifts with a high-capacity 5000mAh removable lithium battery. Swap batteries on the go to keep operations moving without interruption. And with USB Type-C and pin charging options, recharging is as flexible as your team’s workflow.
Rugged Reliability You Can Count On
Designed for challenging environments, the TVS-E HS65 is built tough with IP67 sealing, drop resistance up to 1.5 meters, and ESD protection up to +15KV. From warehouse floors to field service sites, it’s engineered to withstand the unexpected.
Enterprise Mobility Tools at Your Fingertips
With full Android SDK support, JDK, and Eclipse toolkit compatibility, your development team can easily customize and deploy apps. The device also supports OTG and Java for seamless integration into your existing IT ecosystem.
Expandable and Customizable to Meet Your Needs
Whether you need more storage via microSD (up to 512GB), or industry-specific add-ons like a scan handle or multi-bay chargers, the HS65 adapts to your workflow. Choose from standard or optional accessories to tailor your deployment for maximum efficiency.
| Processor |
Octa-core 2.0GHz high-performance processor |
| Operating System |
Android 14.0 (GMS), Future Upgradeable to Android 16, |
| Memory (ROM+RAM) |
6GB + 64GB, 8GB + 128GB (optional) |
| Expansion Slot |
Micro SD card (up to 512GB) |
| Dimensions (L*W*D) |
170 mm x 78 mm x 14.5 mm |
| Weight |
285g (including the battery) |
| Display Screen |
6.5-inch, resolution: 1600*720, 45Onits |
| Touch Screen |
Industrial capacitive screen, support wet-hand
operation/glove mode/multi-touch
|
| Camera |
8MP rear camera (auto-focus/PDAF), 5MP front camera |
| Keypad |
Side scan key *2, Side power key *1, volume key*2 |
| Battery |
3.85V lithium battery, |5000mAh (Removable) |
| Audio |
Built-in dual microphone |
| Charging Method |
Type-C charging and pin port charging. |
|
Operating Temperature
|
~20°C-50°C |
| Storage Temperature |
~20°C-60°C
|
| Humidity |
0 - 95% (no moisture condensation)
|
| Drop Specification |
Multiple drops to concrete floor from 1.5m |
| Ingress Protection |
Ip67 |
| ESD Protection |
+15KV (air discharge), +8KV (contact discharge) |
| Notifications |
Haptic, Audio and LED |
| Vibrating Motor |
Built-in vibrating motor |
| Sensors |
G-sensor, Proximity sensor, Light sensor, Hall sensor |
| Barcode Type |
Scans one-dimensional / two-dimensional barcodes |
| Aimer |
Laser Crosshair Aimer |
| Scanning Angle |
Pitch: 50°, Yaw: +50°, Rotation: 360° |
| Field of view |
Horizontal: 42°, Vertical: 28° |
| WWAN (Network) |
GSM:B2/B3/B5/B8
WCDMA : B1/B2/B5/B6/B8
FDD-LTE:B1 B2 B3 B4 B5 B7 B8 B19 B20 B26 B28
TDD-LTE:B38 B40 B41
|
| WLAN |
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w, Dual band 2.4 & 5 Ghz |
| Bluetooth |
Bluetooth 5.2 |
| GPS |
GPS+Glonass+Beidou+Galileo(+AGPS) |
| Working Frequency |
13.56 MHZ |
| Reading Distance |
30mm |
| Communication Protocol |
1SO14443A/14443B/15693 |
| USB Interface |
Type-C (with headset function) |
| OTG Interface |
Support |
| Programming Language |
Java |
| Software Toolkit |
Android SDK + JDK + Eclipse |
| Standard |
USB cable, Power adapter, Rubber Boot, Tempered Glass protector. |
| Optional Accessories |
Scan Handle, Single Charging Home Base, Quad Bay Battery
Charger,
|
