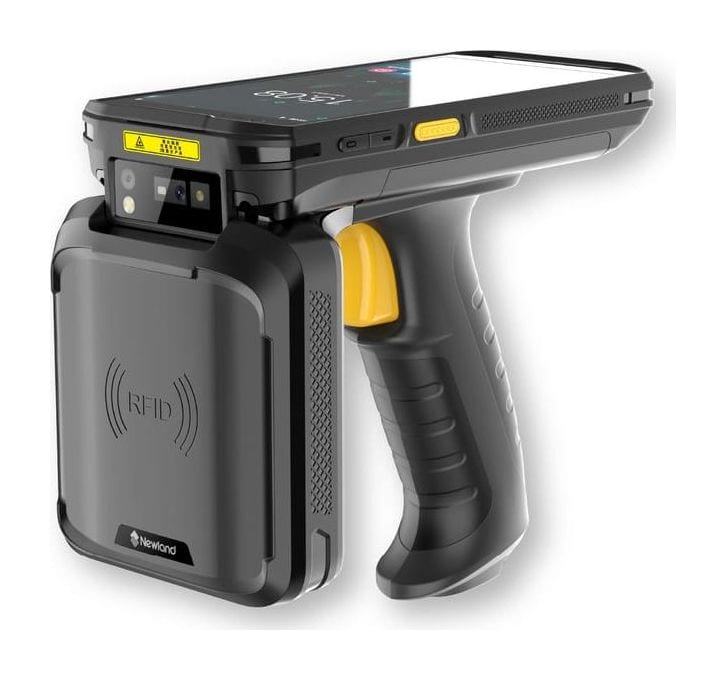

Newland · UHF RFID handheld reader
The UHF RFID version of the Newland MT93: an Android 13 handheld with a pistol grip, an Impinj E710 based UHF reader and 1D/2D barcode scanning, for stock counts, asset tracking and goods-in checks in stores and warehouses.
MT93-U price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland.
Why the MT93-U
The MT93-U is the UHF RFID version of Newland's MT93 Android handheld. It keeps the MT93's 5.5-inch touch screen, Android 13 and 1D/2D barcode scanning, and adds a pistol grip with a trigger and a UHF RFID reader based on the Impinj E710 chip.
Newland rates the read rate at 900 tags per second or more, and the read range at over 12 m indoors and over 8 m in open outdoor space, measured with an Alien 9740 tag. Newland notes that both figures depend on the tag and the surroundings.
The reader works with EPC Class 1 Gen 2 (ISO 18000-6C) tags and writes tags from 0 to 3 m. Newland's pre-installed UHF app can filter, read, write, lock and kill tags, and can send the EPC of a tag as keyboard input to your own app.
A circularly polarised 4 dBi antenna, with reader output power adjustable from 5 dBm to 33 dBm (±1 dB). Turn the power down to read only the shelf or carton in front of you, and up for a wide stock sweep.
The same handheld reads 1D and 2D barcodes, for example a 13 mil EAN-13 from 70 to 610 mm and a 15 mil QR code from 55 to 410 mm. The left and right scan keys and the grip trigger can each start a barcode scan or an RFID inventory.
The removable 10,000 mAh battery gives up to 10 hours on one charge in most conditions, according to Newland. From below 5%, a full charge takes about 6 to 8 hours with the device off or asleep, so plan spare batteries for back-to-back shifts.
Android 13 with Google Mobile Services on a 2.2 GHz octa-core processor, 4 GB RAM and 64 GB storage, plus microSD up to 256 GB.
Used in
For buyers in India
These are the points buyers in India ask us about the MT93-U. Mention the ones that apply to you when you request a quote.
Confirm the MT93-U's India region setting before ordering, because Newland does not say which range the India version uses. Newland lists an ETSI range of 865.6-867.6 MHz, inside India's 865-868 MHz UHF RFID band, plus FCC (902-928 MHz) and China (920-925 MHz) ranges.
Before ordering, confirm that the India unit's power is limited to 2 W e.r.p., and expect less than the 12 m headline range at that level. Newland rates the reader output at up to 33 dBm into a 4 dBi antenna, about 37 dBm EIRP or 3 W e.r.p. That is above India's 2 W e.r.p. limit (33 dBm e.r.p., 35.15 dBm EIRP). With this antenna, the limit works out to about 31 dBm reader output. Newland does not say how the India unit is configured.
The MT93-U's 4G bands cover Jio, Airtel and Vi, but there is no 5G radio. Confirm the India model's bands before ordering. Newland lists FDD bands 1, 2, 3, 5, 7, 8, 20 and 28 and TDD bands 34, 38, 39, 40 and 41. That covers Jio (3, 5, 40), Airtel (1, 3, 8, 40, and 5 in some circles) and Vi (1, 3, 8, 40, 41).
Dusty godowns and rain on a loading dock are within the MT93-U's rating, but it is not rated for immersion. IP65 means dust-tight and protected against water jets, unlike the IP67 MT93. The MT93-U works up to 55 °C in 5-95% humidity, non-condensing, and Newland gives a minimum charging temperature of 0 °C and no upper limit.
A site running two shifts should plan a charged spare battery per MT93-U. A full charge takes about 6 to 8 hours, and the battery lasts up to 10 hours. The 18 W fast-charge adapter accepts 100-240 V AC at 50-60 Hz. That covers India's 230 V and 240 V, 50 Hz mains.
Specifications
| General | |
|---|---|
| Operating system | Android 13 (GMS) |
| Processor | Octa-core 64-bit, 2.2 GHz (2 × A76 at 2.2 GHz, 6 × A55 at 2 GHz) |
| Memory | 4 GB RAM, 64 GB storage |
| Expansion | microSD, up to 256 GB |
| SIM | Nano + nano SIM, or nano SIM + microSD |
| Sensors | Light and proximity, gravity, gyroscope, electronic compass |
| Display and input | |
| Display | 5.5-inch, 720 × 1440, multi-point capacitive touch, Gorilla Glass, up to 400 nits |
| Keys | Left and right scan keys, volume +/-, power; trigger on the pistol grip; on-screen Menu, Home, Back |
| Cameras | 13 MP rear with autofocus and LED flash; 5 MP front |
| Audio and alerts | Dual noise-reduction microphones, speaker (8 Ω, 1 W, 103 dB at 10 cm), multi-colour LEDs, vibration |
| UHF RFID | |
| UHF module | Based on Impinj E710 |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Frequency range | FCC (USA): 902-928 MHz; ETSI (Europe): 865.6-867.6 MHz; SRRC-MII (China): 920-925 MHz |
| Read range | Over 12 m indoors; over 8 m in open outdoor space (with an Alien 9740 tag; depends on tag and environment) |
| Write distance | 0-3 m |
| Read rate | 900 tags per second or more (depends on tags and environment) |
| Antenna | Circularly polarised, 4 dBi; output power 5-33 dBm, adjustable (±1 dB) |
| Barcode scanning | |
| 2D symbologies | Aztec, Composite, CS Code, MaxiCode, Micro PDF417, Micro QR, PDF417, QR Code, Data Matrix, DotCode |
| 1D symbologies | Code 128, Code 49, Code 16K, GS1-128 (UCC/EAN-128), AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF-6, ITF-14, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Code 39, ISSN, ISBN, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1 DataBar (RSS) |
| Depth of field | EAN-13 13 mil: 70-610 mm; Code 39 5 mil: 110-290 mm; PDF417 6.7 mil: 110-230 mm; Data Matrix 10 mil: 110-260 mm; QR 15 mil: 55-410 mm (depends on barcode and environment) |
| Communication | |
| Mobile network | 4G: FDD-LTE B1, B2, B3, B5, B7, B8, B20, B28 (a and b); TDD-LTE B34, B38, B39, B40, B41. 3G: WCDMA B1, B2, B5, B8; CDMA 1X EVDO BC0. 2G: 850/900/1800/1900 MHz |
| Wi-Fi | 802.11 a/b/g/n/ac/ax/k/v/r, dual band 2.4 and 5 GHz |
| Bluetooth | 5.2 with BLE |
| Location | GPS (A-GPS), GLONASS, BeiDou, Galileo |
| Ports | USB Type-C (also for headphones); charging contacts on the bottom; 2-pin contacts for the pistol grip |
| Power | |
| Battery | 10,000 mAh, removable |
| Battery life | Up to 10 hours on one charge in most conditions (Newland's figure) |
| Charging | 18 W fast charging; adapter input 100-240 V AC, 50-60 Hz; output 5 V / 7 V / 9 V, 2 A. About 6-8 hours from below 5% (device off or asleep); charge above 0 °C |
| Physical and environment | |
| Dimensions | 168 × 86 × 149 mm (L × W × H) |
| Weight | 665 g with battery |
| Sealing | IP65 |
| Drops | 1.5 m to concrete, one drop on each of six sides |
| Operating temperature | -20 °C to 55 °C |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5-95%, non-condensing |
| ESD | ±15 kV air, ±8 kV direct |
| Software | |
| RFID software | Pre-installed UHF app: inventory with single-tag, quick and multi-tag modes; tag filter, read, write, lock and kill; EPC output as keyboard input or into a text field |
| Device management | Newland Ndevor |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland. |
Newland lists a spare battery, adapter, cable and charging cradle as optional accessories; ask for them in the same quotation.
Specifications from Newland's published documents, last checked 9 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Newland MT93-U | Newland MT93 |
|---|---|---|
| UHF RFID | Yes, Impinj E710 based, over 12 m indoors | No (NFC at 13.56 MHz only) |
| Operating system | Android 13 (GMS) | Android 13 |
| Memory | 4 GB RAM, 64 GB | 4 GB RAM, 128 GB |
| Battery | 10,000 mAh, removable | 5,000 mAh, removable |
| Sealing | IP65 | IP67 |
| Drops | 1.5 m | 1.5 m (1.8 m with rubber boot) |
| Weight | 665 g | 277 g |
| Best for | RFID stock counts and asset tracking, with barcode scanning on the same device | Barcode-only work where a light, pocket-sized device matters |
If your job differs from what the MT93-U is built for, this Newland model may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The MT93-U price depends on the accessories (cradles, spare batteries) and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Choose the MT93-U if you need to read UHF RFID tags. It adds a pistol grip with a trigger and an Impinj E710 based UHF reader that Newland rates at 900 tags per second or more and over 12 m indoors. It weighs 665 g and is sealed to IP65. The MT93 has no UHF reader, weighs 277 g and is sealed to IP67, so it suits barcode-only work and all-day carrying. Both run Android 13 and read 1D and 2D barcodes.
It reads and writes passive UHF tags to EPC Class 1 Gen 2, also known as ISO 18000-6C. Newland's UHF app can read and write the reserved, EPC, TID and user memory banks, filter tags, and lock or kill them with a password. Newland does not list NFC for the MT93-U; if you also need to read 13.56 MHz NFC cards, the MT93 lists NFC.
Newland gives over 12 m indoors and over 8 m in open outdoor space, measured with an Alien 9740 tag, and up to 3 m for writing. Newland notes that real range depends on the tag and the environment, and it also falls as reader power is turned down. In India the reader must stay within 2 W e.r.p., which with this antenna is about 31 dBm, so expect less than the headline figure at that setting.
For 4G data it should. Newland's band list, FDD 1, 2, 3, 5, 7, 8, 20 and 28 and TDD 34, 38, 39, 40 and 41, covers the 4G bands of all three operators. It has no 5G radio, and Newland does not list VoLTE. Confirm the India model's bands, and VoLTE if staff will make calls, before ordering.
Yes. It runs Android 13 with Google Mobile Services, so Android apps can be installed in the usual way. Newland's UHF app can pass each tag's EPC to your app as keyboard input, and barcode data can be sent the same way.
Yes. We install the MT93-U at your site, connect it to your ERP, warehouse or billing software (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send the work, the apps your team uses and how many devices you need; we reply with a written quotation.
