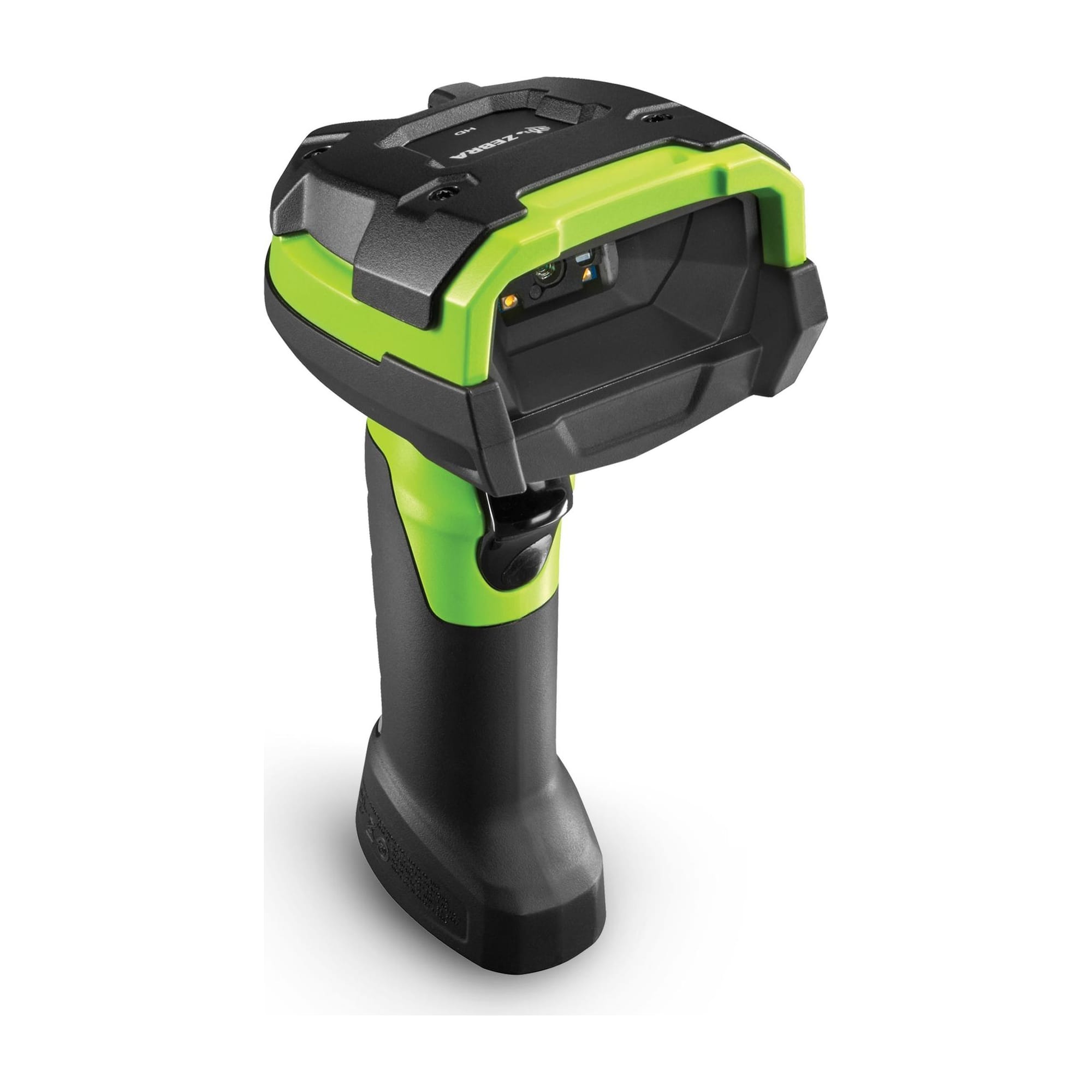

Zebra DS3678-SR Barcode Scanner

Specifications

Decode Capability
1D, 2D, IUID Support
Connectivity
Wireless
Dimension
18.5 cm H x 7.6 cm W x 14.2 cm D
Weight
14.5 oz./411 g
Sealing
IP65
Interface
USB, RS232, Keyboard Wedge

Features

Keyboard Wedge

1D Barcode

2D Barcode

1.5m

IP65

USB

Used for

indoor

outdoor

Superior Scanning on any High Density 1D/2D Barcode Zebra’s exclusive PRZM Intelligent Imaging technology delivers first-time capture of high-density 1D and 2D barcodes printed on labels or directly on product components—including tiny and dense 3 mil codes that are barely visible to the naked eye. Ultra-Rugged—the Most Indestructible Design in its Class Zebra ultra-rugged scanners earned their name for a reason—you won’t find a tougher family of scanners. Ready for the world’s harshest environments, the DS3600-HD has the highest drop, tumble and sealing specifications in its class. Ultra-Rugged Cradle and Charging Contacts Designed to Last The DS3600-HD is the first scanner in its class to offer a cradle with IP65 sealing. Easily Capture Label Data for Better Inventory Management With Label Parse+, the DS3600-HD can instantly capture and parse GS1 label barcode data on items, enabling workers to easily capture a wealth of data, including expiration dates and lot number/manufacturing location. Read Up To 20 Barcodes with One Press of the Scan Trigger With Multi-Code Data Formatting (MDF), the DS3600-HD can capture multiple barcodes with a single scan and transmit only the barcodes you need, in the order your application expects.
Physical Characteristics Dimensions Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.6 cm W x 14.2 cm D
Weight Corded: 10.9 oz./309 g
Cordless: 14.5 oz./411 g
Input Voltage Range Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.
Color Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus
TCP & Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
User Indicators Direct decode indicator; LEDs; beeper; vibration
Wireless Connectivity Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range Direct line of sight in open air: Class 1: Minimum
300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
Regulatory Environmental RoHS EN 50581: 2012
Electrical Safety EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013;
International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013
US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
Laser/LED Safety International LED Safety: IEC 62471: 2006 (Ed.1.0);
EN 62471: 2008 (LED); UL, VDE and CU recognized laser component
EMI/RFI IT Emissions: EN 55022: 2010/AC: 2011 (Class B);
IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005;
Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B);
Voltage Fluctuation and Flicker: EN 61000-3-3: 2013;
Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified);
Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B
Performance Characteristics Scans per Full Charge 100,000+
Image Capture Basic
Illumination Two (2) warm white light LEDs
Aimer 655 nm laser
Imager Field of View Horizontal: 31°, Vertical: 23°
Image Sensor 1,280 x 960 pixels
Minimum Print Contrast 15% minimum reflective difference
Skew/Pitch/Roll Skew: ± 60°
Pitch: ± 60°
Roll: ± 360°
Decode Ranges (Typical) Symbology/Resolution Near/Far
Code 128: 3 mil 2.0-3.0 in./5.1-7.6 cm
Code 128: 20 mil 2.2-26.0 in./5.6-66.0 cm
Datamatrix: 10 mil 1.0-9.0 in./ 2.5-22.9 cm
PDF417: 5 mil 2.0-6.0 in./5.1-15.2 cm
