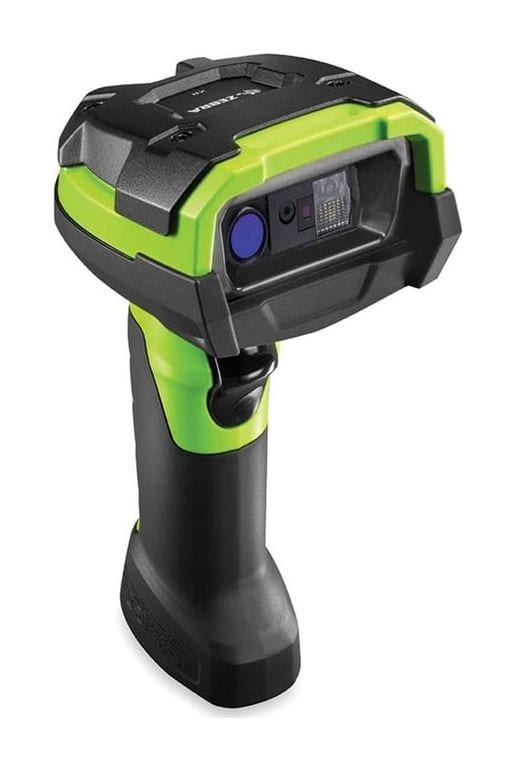

Zebra · Ultra-rugged barcode scanner
An ultra-rugged 1D/2D scanner that reads labels in the hand and on top-level racking, in corded (DS3608-XR) and cordless (DS3678-XR) versions, for warehouses, cold stores, yards and plants.
DS3600-XR price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra DS3600-XR
Why the DS3600-XR
The DS3600-XR is Zebra's extended-range model in its 3600 ultra-rugged family. Zebra names it as the replacement for the DS3608-ER and DS3678-ER, which stopped selling in APAC (including India) on 30 June 2025.
Two image sensors cover close and long distances. A 5 mil Code 39 label reads from 3.3 cm, while a 100 mil Code 39 label reads up to 32.0 m and a 200 mil Data Matrix up to 30.5 m, so a forklift driver can scan the top rack and the carton in hand.
A 520 nm green laser aimer marks the target, and two warm-white LEDs light the code. Zebra rates it for ambient light up to 107,639 lux, which covers outdoor yards and loading docks.
Sealed to IP65 and IP68, tested for multiple 3.0 m drops to concrete at room temperature and 7,500 tumbles at 1.0 m. The corded model works from -30 °C to 50 °C and the cordless model from -20 °C to 50 °C.
The cordless DS3678-XR uses a 3,100 mAh PowerPrecision+ battery rated for 80,000 scans per charge, which Zebra puts at 23 hours or more of continuous scanning. Its Class 1 Bluetooth 4.0 LE link has a minimum 100 m line-of-sight range, and Zebra's FLB charging cradle is sealed to IP65.
Zebra lists USB, RS232 and keyboard wedge. For PLCs and line controllers, Zebra's Network Connect for Automation adds industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP and standard TCP/IP) through a separate adapter.
Configure it with 123Scan, manage fleets with Scanner Management Service and build apps with the Scanner SDK. Allmark can connect it to your WMS or ERP, including our own warehouse management system, and set it up on site.
Used in
For buyers in India
These are the points buyers in India ask us about the DS3600-XR. Mention the ones that apply to you when you request a quote.
For a freezer run colder than -20 °C, choose the corded DS3608-XR: Zebra rates it down to -30 °C, and the cordless DS3678-XR down to -20 °C.
Put the DS3678-XR cradle in the ante-room or office, not inside the freezer. Zebra's reference guide says to charge the battery at 0 °C to 40 °C, ideally 5 °C to 35 °C, to avoid a battery temperature fault. The scanner works at -20 °C, but a cradle inside a -18 °C freezer is outside that charging range. The same limit applies at the hot end: on a dock above 40 °C, the battery is outside its charging range.
Expect moisture on the housing and scan window when a scanner leaves a cold store; Zebra recommends its heated scanner holder to reduce window condensation when moving in and out of freezers. Zebra rates the DS3600-XR for 5-95% humidity, non-condensing, and seals the housing to IP65 and IP68.
Keep the scanner out of direct sun on forklift seats and dock plates, where it gets hotter than the air. Both DS3600-XR models are rated to work up to 50 °C and to be stored up to 70 °C.
Quote Zebra's 'India & Korea' configurations when ordering: DS3608-XR60003VZK (corded) and DS3678-XR6F003VZK (cordless), as listed in its reference guide. Where the host cannot power the cradle, Zebra's 12 V supply PWR-BGA12V50W0WW is rated for 100-240 V AC input, which covers India's 230 V mains.
Specifications
| General | |
|---|---|
| Models | DS3608-XR (corded), DS3678-XR (cordless) |
| Colour | Industrial Green |
| Input voltage | 4.5-5.5 VDC host powered; 11.4-12.6 VDC external power |
| Operating current (corded) | 360 mA near, 450 mA far (RMS typical); standby 100 mA |
| Battery (cordless) | PowerPrecision+ 3,100 mAh Li-ion, rechargeable |
| Scans per charge (cordless) | 80,000 |
| Continuous scanning (cordless) | At least 23 hours per charge (as stated by Zebra) |
| User indicators | Direct decode indicator, LEDs, beeper, vibration |
| Security | Certified compliant with FIPS 140-3; TAA compliant (specific configuration required) |
| Scanning | |
| Barcodes | 1D, 2D and Digimarc |
| Image sensors | Near: 1280 × 800 pixels; far: 1920 × 1080 pixels |
| Field of view | Near: 42.1° H × 27° V; far: 14° H × 7.9° V |
| Aimer | 520 nm laser (green) |
| Illumination | Two warm-white LEDs (2700 K) |
| Scan angles (skew / pitch / roll) | Skew ±60°, pitch ±60°, roll 360° |
| Minimum print contrast | 25% reflective difference |
| Range: UPC-A 13 mil | 3.3 cm to 3.7 m |
| Range: Code 128 15 mil | 5.3 cm to 4.1 m |
| Range: Code 128 100 mil | Up to 26.7 m (near distance depends on barcode width) |
| Range: Code 39 5 mil | 3.3 cm to 1.4 m |
| Range: Code 39 100 mil | Up to 32.0 m (near distance depends on barcode width) |
| Range: Data Matrix 10 mil | 3.3 cm to 1.7 m |
| Range: Data Matrix 200 mil | Up to 30.5 m (near distance depends on barcode width) |
| Range: QR Code 10 mil | 3.3 cm to 1.4 m |
| Connectivity | |
| Host interfaces | USB, RS232, keyboard wedge; industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP, standard TCP/IP) through Zebra Network Connect for Automation, using a separate adapter |
| Bluetooth (cordless) | Class 1, version 4.0 LE; SPP and HID profiles |
| Bluetooth range | Class 1: minimum 100 m line of sight; Class 2: minimum 10 m |
| Physical and environment | |
| Dimensions (H × W × D) | Corded 18.5 × 7.6 × 13.2 cm; cordless 18.5 × 7.7 × 14.2 cm |
| Weight | Corded 308 g; cordless 410 g |
| Operating temperature | Corded -30 °C to 50 °C; cordless -20 °C to 50 °C |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5-95%, non-condensing |
| Drops | Multiple 3.0 m drops to concrete at room temperature; multiple 2.4 m drops across the operating temperature range |
| Tumbles | 7,500 at 1.0 m |
| Sealing | Scanner IP65 and IP68; FLB cradle IP65 |
| ESD | ±25 kV air, ±10 kV direct/indirect (EN61000-4-2) |
| Ambient light | 0-107,639 lux |
| Software | |
| Utilities | 123Scan, Scanner SDK, Scanner Management Service (SMS), Network Connect |
| Suite | Zebra DNA for Scanners |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
Zebra sells the interface cable separately, and the cradle for the cordless DS3678-XR. Ask for them, spare batteries and any power supply in the same quotation. Part numbers are from Zebra's DS36X8 Product Reference Guide (October 2025) and 3600 Series accessory guide; we confirm the India part numbers in the quotation.
Specifications from Zebra's published documents, last checked 13 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Zebra DS3600-XR | Zebra DS3608-ER / DS3678-ER |
|---|---|---|
| Image sensor | Near 1280 × 800 + far 1920 × 1080 | 1280 × 800 |
| Aimer | 520 nm green laser | 655 nm laser |
| Range: Code 128 100 mil | Up to 26.7 m | 50.8 cm to 21.3 m |
| Weight (corded / cordless) | 308 g / 410 g | 334 g / 436 g |
| Scans per charge (cordless) | 80,000 | 70,000+ |
| Sealing | IP65 / IP68 | IP65 / IP68 |
| Best for | New extended-range installations | Units already in use; no longer sold in APAC since 30 June 2025 |
If your job differs from what the DS3600-XR is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Part numbers
Quote the part number for your DS3600-XR in your enquiry and we confirm the exact part. These are Zebra's own codes; if you do not have yours, send a photo of the device's rating label.
| Part number | What it is | Ask about this part |
|---|---|---|
| BTRY-36IAB0E-00K | Spare Battery, DS/LI 3678 - India, Korea Only | Ask on WhatsApp about BTRY-36IAB0E-00K (opens in a new tab) |
Part numbers as published by Zebra, checked in Zebra's published documents on 10 October 2026. Parts and printer configurations available in India can change; we confirm the exact code and the delivery time in your quotation. About our product information
Downloads
Questions buyers ask
The DS3600-XR price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Zebra stopped selling the DS3608-ER and DS3678-ER in APAC, which includes India, on 30 June 2025, and names the DS3600-XR as the replacement. Zebra support for the ER models continues until October 2030, so existing units can stay in use. For new purchases, the XR adds a second far-range sensor, a green laser aimer and longer reach on large labels, and it is lighter.
It depends on the label size. Zebra's typical ranges are 3.3 cm to 3.7 m for a 13 mil UPC-A, up to 26.7 m for a 100 mil Code 128, up to 32.0 m for a 100 mil Code 39 and up to 30.5 m for a 200 mil Data Matrix. Include your rack heights and label sizes in your quote request.
Choose the corded DS3608-XR for fixed workstations, packing lines and the coldest areas, as it works down to -30 °C. Choose the cordless DS3678-XR for forklifts and walking pickers: it works down to -20 °C, gives up to 80,000 scans per charge and connects over Bluetooth with a minimum 100 m line-of-sight range.
Yes, within its ratings. Zebra rates the scanner IP65 and IP68, tests it for repeated 3.0 m drops to concrete and 7,500 tumbles, and rates it for ambient light up to 107,639 lux. For a freezer run colder than -20 °C, choose the corded DS3608-XR, rated to -30 °C. The cordless DS3678-XR is rated to -20 °C and its battery charges at 0-40 °C, so keep its cradle outside the freezer.
Yes. We install the DS3600-XR at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
