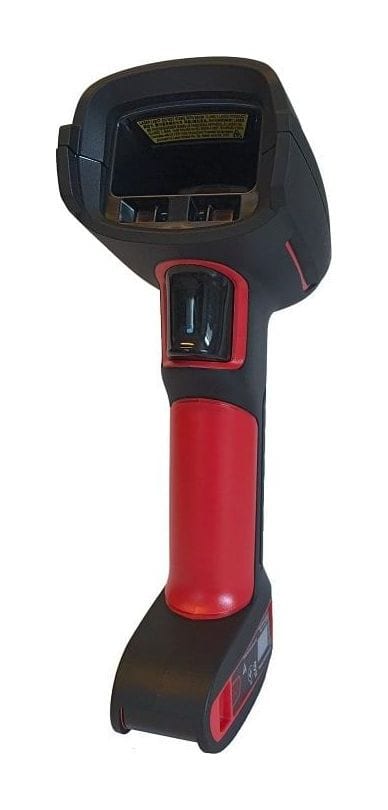

Honeywell · Industrial long-range barcode scanner
A corded ultra-rugged 1D/2D scanner that reads codes from close up to high rack labels, for warehouses, distribution centres and plants that scan from the floor or a forklift.
Granit XP 1990iXLR price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Honeywell.
Already use one? Need service? Log a service call for the Honeywell Granit XP 1990iXLR
Why the Granit XP 1990iXLR
The Granit XP 1990iXLR is Honeywell's corded extended-range Granit and its named replacement for the Granit 1980i and the Granit 1280i laser scanner.
Reads 100 mil Code 39 rack labels up to 24 m, 100 mil Data Matrix up to 11.4 m and 20 mil Code 39 up to about 5.9 m, so pickers scan top-level locations from the floor or a forklift.
A near imager (1280 × 800, global shutter) and a far imager (1920 × 1080) work together: a 13 mil UPC reads from 11 mm to 2.2 m, so the same scanner handles cartons in hand.
Tested to 3 m drops (MIL-STD-810G), 20 drops from 2.4 m, 50 drops from 1.8 m across -30 °C to 50 °C, and 7,000 tumbles at 1 m. The small, recessed window resists scratches.
Rated IP65 and IP67 and specified from -30 °C to 50 °C (with Honeywell's industrial-grade cable), for cold rooms, loading docks and dusty plants.
Motion tolerance up to 4,500 mm/s and decoding built for damaged and low-quality labels reduce rescans. A laser aimer helps target labels far away.
Honeywell's Scanner Management Utility and Operational Intelligence software deploy settings and report scan data. Allmark connects scanners to your WMS or ERP and trains staff on site.
Used in
For buyers in India
These are the points buyers in India ask us about the Granit XP 1990iXLR. Mention the ones that apply to you when you request a quote.
For top racks, angle labels down towards the aisle or use larger labels, because looking steeply up at a label on the rack face shortens the 1990iXLR's usable range. Honeywell's ranges are measured with the scanner facing the label; the spec allows 45° pitch and 65° skew. Grade A warehouses in India typically have 10 to 12 m clear height. A label near the top of a 12 m building can be about 10.5 m from a scanner held at 1.5 m.
For cold-chain sites, put Honeywell's industrial-grade cable on the same order as the 1990iXLR; it is sold separately. Only with that cable is the scanner rated down to -30 °C.
Monsoon rain at an open dock door is within the 1990iXLR's rating: it is sealed to IP65 and IP67. Under IEC 60529, IP65 covers water jets from any direction and IP67 covers immersion up to 1 m for 30 minutes.
Specifications
| General | |
|---|---|
| Form factor | Corded handheld, area imager, extended long range (XLR) |
| User indicators | Good-decode LEDs, beeper (adjustable tone and volume), vibration (adjustable) |
| Scanning | |
| Image sensors | Near: 1280 × 800, global shutter; far: 1920 × 1080, rolling shutter |
| Aimer | Laser (Honeywell product page) |
| Motion tolerance | Up to 4,500 mm/s |
| Print contrast | 20% minimum reflectance difference |
| Roll, pitch, skew | 360°, 45°, 65° |
| Symbologies | Standard 1D, PDF, 2D, postal, Digimarc, DotCode and OCR |
| Typical range, 13 mil UPC | 11 mm to 2,244 mm |
| Typical range, 10 mil Code 128 | 48 mm to 2,202 mm |
| Typical range, 20 mil Code 39 | 15 mm to 5,944 mm |
| Typical range, 100 mil Code 39 | Up to 24 m |
| Typical range, 100 mil Data Matrix | Up to 11.4 m |
| Typical range, 5 mil Code 39 | 87 mm to 370 mm |
| Typical range, 10 mil Data Matrix | 89 mm to 393 mm |
| Light levels | 0 to 100,000 lux |
| Connectivity | |
| Host interfaces | USB, keyboard wedge, RS-232 TTL |
| Physical and environment | |
| Dimensions | 192 × 76 × 100 mm |
| Weight | 320 g |
| Input voltage | 4.0 to 5.5 V DC |
| Operating power | 2.35 W (470 mA at 5 V DC) |
| Standby power | 0.5 W (100 mA at 5 V DC) |
| Operating temperature | -30 °C to 50 °C (with industrial-grade cable, sold separately) |
| Storage temperature | -40 °C to 70 °C |
| Humidity | Up to 95% relative humidity, non-condensing |
| Sealing | IP65 and IP67 |
| Drops | 3 m (MIL-STD-810G, 25 °C); 20 drops from 2.4 m at 25 °C; 50 drops from 1.8 m across -30 °C to 50 °C |
| Tumbles | 7,000 at 1 m (IEC 60068-2-32) |
| ESD | ±20 kV air, ±8 kV contact |
| Software | |
| Utilities | Honeywell Scanner Management Utility (SMU); Honeywell Operational Intelligence for scan insights |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Honeywell. |
For forklift use, ask for the vehicle mount kit and an industrial-grade cable in the same quotation.
Specifications from Honeywell's published documents, last checked 7 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Honeywell Granit XP 1990iXLR | Honeywell Granit 1980i | Honeywell Granit 1990iSR |
|---|---|---|---|
| 13 mil UPC range | 11 mm to 2,244 mm | 122 mm to 2,298 mm | 0 to 504 mm |
| 100 mil Code 39 range | Up to 24 m | 1.03 m to 16 m | Not published (standard range) |
| Sealing | IP65 and IP67 | IP65 | IP65 and IP67 |
| Tumbles | 7,000 at 1 m | 5,000 at 1 m | 7,000 at 1 m |
| Weight | 320 g | 335 g | 320 g |
| Operating temperature | -30 °C to 50 °C (industrial-grade cable) | -30 °C to 50 °C | -30 °C to 50 °C |
| Best for | Rack labels and close-up scans with one device | Existing installations (end of life 05-2023) | Arm's-length scanning only |
If your job differs from what the Granit XP 1990iXLR is built for, these Honeywell models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The Granit XP 1990iXLR price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Honeywell lists the Granit 1980i as end of life since May 2023 and names the Granit 1990iXLR as its replacement. On Honeywell's datasheets, the 1990iXLR reads 100 mil Code 39 to 24 m (the 1980i: 16 m), reads a 13 mil UPC from 11 mm (the 1980i: from about 12 cm), and adds IP67 sealing and 7,000 tumbles instead of 5,000.
Honeywell lists the Granit 1280i as end of life since December 2023 and names the Granit 1990iXLR as its replacement. The 1280i is a full-range laser that reads linear (1D) barcodes. The 1990iXLR is an area imager, so it also reads 2D codes such as QR and Data Matrix. That helps if your suppliers or customers print 2D codes on cartons or pallet labels.
In Honeywell's typical tests it reads 100 mil Code 39 rack labels up to 24 m, 100 mil Data Matrix up to 11.4 m, 20 mil Code 39 up to about 5.9 m and a 13 mil UPC up to about 2.2 m. Real distances depend on label size, print quality and lighting, so share your rack label size when you ask for a quote.
Yes. Honeywell lists a vehicle mount kit (part 1990IXLR-3-A) for this scanner. It is rated for 3 m drops and 7,000 tumbles, and for -30 °C to 50 °C when used with Honeywell's industrial-grade cable. If drivers need to move away from the truck, consider the cordless Granit XP 1991iXLR instead.
Yes. We install the Granit XP 1990iXLR at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
