Pick the range you need
SR reads from contact to arm's length. HD reads 1D and 2D codes as small as 2 mil. XR reads UPC/EAN-13 to about 1.8 m and 100 mil Code 39 to 10.85 m. XLR reads 100 mil Code 39 to about 30 m.
IIoT
Browse IIoT
IIoT
Browse IIoT

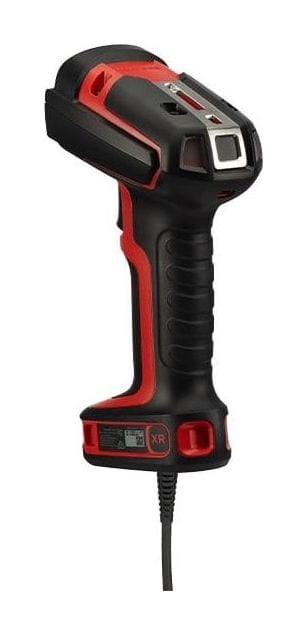

Honeywell · Industrial barcode scanner
A corded ultra-rugged 1D/2D area-imaging scanner in four range versions, for factories, warehouses and 3PL docks that read printed 1D and 2D labels.
Granit Ultra 2100i price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Honeywell.
Already use one? Need service? Log a service call for the Honeywell Granit Ultra 2100i
Why the Granit Ultra 2100i
The Granit Ultra 2100i is Honeywell's current corded ultra-rugged scanner. Honeywell names the 2100iSR and 2100iHD as replacements for the Granit 1920i DPM.
SR reads from contact to arm's length. HD reads 1D and 2D codes as small as 2 mil. XR reads UPC/EAN-13 to about 1.8 m and 100 mil Code 39 to 10.85 m. XLR reads 100 mil Code 39 to about 30 m.
Honeywell uses faster processing and AI-based decoding in the 2100i to read difficult codes on the first scan.
Tested to 3 m drops (MIL-STD-810G), 50 drops from 2 m and 7,500 tumbles at 1 m. Sealed to IP65 and IP68, rated from -30 °C to 50 °C, with a trigger tested to 3 million cycles.
The 2100i can read several codes in its field of view and send the data in a set order using Honeywell's Data Format Editor, useful for part labels that carry part number, lot and serial codes.
USB, keyboard wedge or RS-232 TTL, with cables to convert to ±12 V RS-232. Allmark connects scanners to ERP, MES and warehouse software and provides on-site installation and training.
Used in
For buyers in India
These are the points buyers in India ask us about the Granit Ultra 2100i. Mention the ones that apply to you when you request a quote.
Keep 2100i scanners used in freezers in the cold zone where you can: a unit carried out into warm, humid air will mist over until it warms. The 2100i is rated down to -30 °C, and its humidity rating is non-condensing.
The Granit Ultra 2100i reads QR and Data Matrix codes, so it scans the QR codes on active pharmaceutical ingredient (API) labels, on drums and cartons alike.
The 2100i suits open yards in the monsoon and plant floors that are hosed down, but not high-pressure or steam cleaning. It is sealed to IP65 and IP68. Under IEC 60529, IP65 means dust-tight and protected against water jets from any direction. IP68 covers continuous immersion under conditions the manufacturer sets.
Specifications
| General | |
|---|---|
| Form factor | Corded handheld, area imager |
| Versions | 2100iSR (standard range), 2100iHD (high density), 2100iXR (expanded range), 2100iXLR (ultra long range) |
| User indicators | Good-decode LEDs, beeper (adjustable tone and volume), vibration (adjustable) |
| Scanning | |
| Image sensor | SR / HD / XR: 1280 × 1080 pixel array (XR has near and far imagers); XLR: near and far imagers, 1920 × 800 pixel array |
| Illumination | SR / HD: warm white LED, 2700 K; XR / XLR: yellow-green LED |
| Aimer | SR / HD: green LED, 525 nm; XR / XLR: green class 2 laser, 520 nm |
| Motion tolerance | Up to 4,000 mm/s |
| Field of view | SR: 42° × 36°; HD: 28° × 24°; XR near 42° × 36°, far 16° × 14°; XLR near 45° × 19.6°, far 13.7° × 5.7° |
| Print contrast | As low as 15% |
| Roll, pitch, skew | ±360°, ±65°, ±65° |
| Minimum resolution | SR / XR / XLR: 2.5 mil 1D, 5 mil 2D; HD: 2 mil 1D and 2D |
| Symbologies | 1D (Code 39, 128, 93, 11, 32, EAN, UPC, Codabar, China Post, GS1 DataBar), 2D (Aztec, Data Matrix, QR / Micro QR, MaxiCode, Han Xin, postal, PDF417, DotCode), Digimarc, OCR (depends on configuration) |
| Typical range, 13 mil UPC | SR 0-634 mm; XR 0-1,780 mm; XLR 19-3,679 mm; HD 18-155 mm |
| Typical range, 100 mil Code 39 | XR up to 10,848 mm; XLR up to 29,918 mm |
| Typical range, 10 mil Data Matrix | SR 5-261 mm; XR 5-261 mm; XLR 90-1,566 mm; HD 0-116 mm |
| Typical range, small codes (HD) | 2 mil Code 39: 0-72 mm; 5 mil Data Matrix: 0-84 mm |
| Image capture | Up to 109 PPI on an A4 document |
| Light levels | 0 to 100,000 lux |
| Connectivity | |
| Host interfaces | USB, keyboard wedge, RS-232 TTL (cables available to convert to ±12 V RS-232) |
| Physical and environment | |
| Dimensions | 194.8 × 75.8 × 139.5 mm |
| Weight | 330 g |
| Input voltage | 4.0 to 5.5 V DC |
| Operating power | 2.15 W (430 mA at 5 V DC) on USB |
| Standby power | 0.875 W (175 mA at 5 V DC) |
| Operating temperature | -30 °C to 50 °C |
| Storage temperature | -40 °C to 70 °C |
| Humidity | Up to 95% relative humidity, non-condensing |
| Sealing | IP65 and IP68 |
| Drops | 3 m (MIL-STD-810G, 25 °C); 20 drops from 2.5 m and 50 drops from 2 m across -30 °C to 50 °C |
| Tumbles | 7,500 at 1 m |
| Vibration | 5 G peak, 5 to 300 Hz |
| Trigger life | Tested to 3 million activations |
| ESD | ±20 kV air, ±8 kV contact, ±8 kV indirect coupling plane |
| Software | |
| Utilities | EZConfig, Scanner Management Utility (SMU), Total Freedom, Scanner Edge, SDKs and drivers |
| Data formatting | Data Format Editor: reads several codes in the field of view and outputs them in a set order |
| Service | Honeywell Edge Service |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Honeywell. |
Ask for a stand or holster and the right interface cable in the same quotation.
Specifications from Honeywell's published documents, last checked 7 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Honeywell Granit Ultra 2100i | Honeywell Granit 1920i DPM | Honeywell Granit 1990iSR |
|---|---|---|---|
| Versions | SR, HD, XR, XLR | One DPM model | Standard range |
| Minimum resolution | HD: 2 mil 1D and 2D; others: 2.5 mil 1D, 5 mil 2D | 1D 2.5 mil; 2D 4 mil | 1D 3 mil; 2D 6 mil |
| Sealing | IP65 and IP68 | IP65 | IP65 and IP67 |
| Drop and tumble | 3 m MIL-STD-810G; 7,500 tumbles at 1 m | 50 drops from 2 m; 5,000 tumbles at 1 m | 3 m MIL-STD-810G; 7,000 tumbles at 1 m |
| Operating temperature | -30 °C to 50 °C | -30 °C to 50 °C | -30 °C to 50 °C |
| Weight | 330 g | 312 g | 320 g |
| Best for | New industrial lines and long range | Existing installations (end of life 05-2025) | Printed labels at arm's length |
If your job differs from what the Granit Ultra 2100i is built for, these Honeywell models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The Granit Ultra 2100i price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Honeywell lists the Granit 1920i as end of life from May 2025, with service until December 2028, and names the Granit Ultra 2100iSR and 2100iHD as its replacements. Existing 1920i users can keep running them. Honeywell's 2100i datasheet does not list direct part mark (DPM) reading, so if you read DPM codes, talk to us before ordering. The 2100i adds IP68 sealing, 7,500 tumbles and HD reading down to 2 mil.
Honeywell's Granit Ultra 2100i datasheet does not list direct part mark (DPM) reading or DPM reading distances for any version. If your parts carry dot-peen or laser-etched marks, share sample parts or clear photos of your marks when you ask for a quote, so a suitable scanner can be confirmed with Honeywell before you order.
SR suits printed labels from contact to arm's length. HD suits very small codes, down to 2 mil, on electronic parts and small components. XR reads near codes and UPC labels up to about 1.8 m. XLR is for warehouse racks, reading 100 mil Code 39 up to about 30 m. Tell us your smallest code and the longest reading distance you need.
Honeywell rates the 2100i from -30 °C to 50 °C and seals it to IP65 and IP68 against dust and water. It survives 3 m drops and 7,500 tumbles. Heaters are listed among Honeywell's accessories; ask us if you need one for very cold areas.
Yes. Honeywell lists QR, Micro QR and Data Matrix among the 2100i's 2D codes. Which fields your ERP or batch-record software picks up depends on that software, so tell us what you use when you ask for a quote.
Yes. We install the Granit Ultra 2100i at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
