Zebra · Cordless handheld 1D/2D barcode scanner

Zebra DS2278 Scanner

The cordless model of Zebra's DS2200 Series: a 1D/2D area imager on Bluetooth 4.0 with a 2,400 mAh battery, for billing counters, back-of-store receiving and items too bulky to lift to the scanner.

Type
Cordless handheld, 1D/2D area imager
Wireless
Bluetooth 4.0 with BLE, Class 2
Battery
2,400 mAh Li-Ion · 110,000 scans at 60 a minute
Image sensor
640 × 480 pixels
13 mil UPC range
1.27 to 36.8 cm
Rugged
IP52 · 1.5 m drops

Zebra DS2278 price in India: on written quotation. Share the model, quantity and city; we reply within one working day (Monday to Saturday, 9:30 AM to 6:30 PM).

Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.

Already use one? Need service? Log a service call for the Zebra DS2278

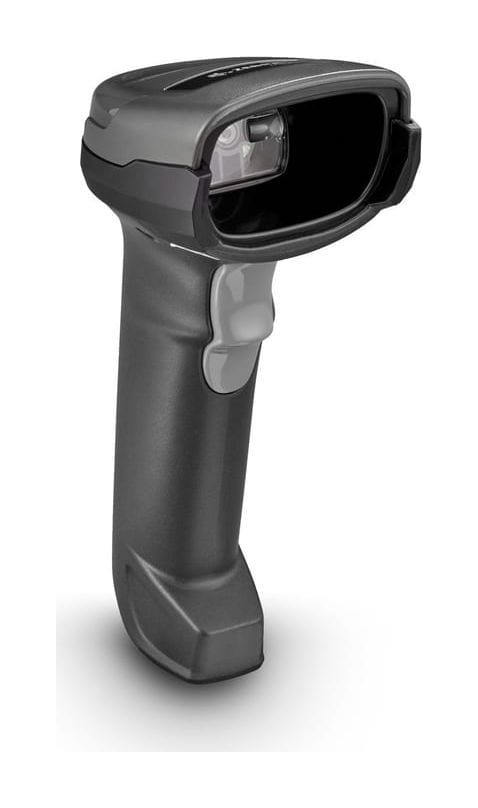

Zebra DS2278 cordless handheld 2D barcode scanner, front-left view

Why the DS2278

The DS2208's scanning, without the cable

The DS2278 is the cordless version of the corded DS2208: Zebra's DS2200 Series spec sheet gives both the same 640 × 480 imager, decode ranges and barcode list. The DS2278 adds Bluetooth 4.0 and a 2,400 mAh battery. It weighs 214 g; the corded DS2208 weighs 161.6 g.

Pairs in one step

With Zebra's Scan-to-Connect, staff pair the DS2278 with a Bluetooth PC, tablet or smartphone in a single step. To pair it with the CR2278 presentation cradle, place the scanner in the cradle or scan the cradle's pairing barcode.

A battery sized for long days

Zebra rates the 2,400 mAh battery for 110,000 scans at 60 scans a minute, or 50,000 at 10 a minute, and for 84 hours of operating time on a full charge in its simulated checkout test.

Charges in the cradle while it works

The presentation cradle charges the battery during use and can take its power from the host, so it does not need a separate power supply. On a standard USB port Zebra gives 4 hours of charging from empty for a 14-hour shift and 17 hours for a full charge; a BC1.2 USB port takes 1 hour and 5 hours. Charging takes longer while the scanner is scanning.

Handheld or hands-free

Place the DS2278 in the presentation cradle and it switches to hands-free scanning by itself; lift it out and it is a handheld again, with no setting to change.

Bluetooth that can keep off your Wi-Fi channels

Zebra's Wi-Fi friendly mode can be set so the scanner avoids the channels your wireless network uses.

Reads 1D and 2D codes in any direction

The 640 × 480 imager with Zebra's PRZM decoding reads UPC/EAN, Code 128, GS1 DataBar, QR Code, Data Matrix and PDF417 without lining up the code. The smallest codes Zebra lists are 4 mil Code 39 and Code 128, 6 mil Data Matrix and 6.7 mil QR Code.

For buyers in India

Using the DS2278 in India

These are the points buyers in India ask us about the DS2278. Mention the ones that apply to you when you request a quote.

Keep the cradle out of the heat

Place the cradle away from a sunny shutter or window: Zebra rates the presentation cradle for 0 °C to 40 °C, while the scanner itself works from 0 °C to 50 °C.

Reads the GST e-invoice QR at goods inward

Carry the DS2278 to the carton instead of the carton to the PC: it reads the QR code on GST e-invoices and passes the text to your software. Zebra gives a 20 mil QR range of 0 to 27.9 cm.

Reads UPI QR codes on bills and phone screens

The DS2278 reads a UPI QR as an ordinary QR Code and passes the text to your software; it does not make or confirm a payment. Zebra's DS2278 reference guide says reading barcodes on mobile phones needs no special mode.

Ask for the India configuration

Ask us which configuration is supplied in India. Zebra's global DS2278 reference guide lists Nova White and Twilight Black models, and one Twilight Black configuration marked India only. We confirm the colour and the exact part number in your quotation.

Specifications

Zebra DS2278 technical specifications

Zebra DS2278 specifications
General
Model DS2278 (cordless); the corded DS2200 Series model is the DS2208
Decode capability 1D, 2D
Colour Nova White, Twilight Black
Supported host interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard support More than 90 international keyboards
Input voltage range (DS2278 and cradle) 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Current (presentation cradle and Micro USB) 500 mA (typical) standard USB; 1,100 mA (typical) BC 1.2 USB
User indicators Direct Decode Indicator; good decode LEDs; rear view LEDs; beeper (adjustable tone and volume)
Wireless and battery
Bluetooth radio Standard Bluetooth Version 4.0 with BLE; Serial Port and HID profiles; output power adjustable down from 2.0 dBm in 8 steps
Range (direct line of sight in open air) Class 2: minimum 10 m (30 ft.) and up to 100 m (300 ft.) when paired with the CR2278 cradle; environmental factors may affect results
Battery 2,400 mAh Li-Ion
Scans per battery charge 110,000 scans at 60 scans per minute, or 50,000 scans at 10 scans per minute (simulated checkout profile of 10 scans in 10 seconds with a 50 second rest)
Operating time per full charge 84 hours (same simulated checkout profile)
Charge time from empty: standard USB 4 hours for a 14-hour shift; 17 hours for a full charge
Charge time from empty: BC1.2 USB 1 hour for a 14-hour shift; 5 hours for a full charge
Charge time from empty: external 5 V source 1 hour for a 14-hour shift; 5 hours for a full charge
Charge time from empty: Micro USB 1 hour for a 14-hour shift (1.5 hours in Zebra's DS2278 reference guide of July 2026); 7 hours for a full charge
Charge time from empty: BC1.2 Micro USB 1 hour for a 14-hour shift; 4 hours for a full charge
Scanning
Image sensor 640 × 480 pixels
Imager field of view 32.8° H × 24.8° V nominal
Aimer Aiming pattern: linear 624 nm amber LED
Illumination (2) 645 nm super-red LEDs
Motion tolerance (handheld) Up to 13 cm/s (5 in./s) for 13 mil UPC
Swipe speed (hands-free) Up to 76.2 cm/s (30 in./s) for 13 mil UPC
Minimum print contrast 25% minimum reflective difference
Skew/pitch/roll Skew ±65°; pitch ±65°; roll 0-360°
Minimum element resolution Code 39: 4.0 mil; Code 128: 4.0 mil; Data Matrix: 6.0 mil; QR Code: 6.7 mil
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
Decode ranges (typical)
Code 39, 5 mil 0.5 cm to 15.2 cm
Code 128, 5 mil 1.5 cm to 10.1 cm
PDF417, 6.7 mil 2.0 cm to 14.5 cm
UPC, 13 mil (100%) 1.27 cm to 36.8 cm
Data Matrix, 10 mil 0.8 cm to 15.7 cm
QR, 20 mil 0 cm to 27.9 cm
Note Ranges depend on printing resolution, contrast and ambient light
Physical and environment
Dimensions (scanner) 17.5 cm H × 6.6 cm W × 9.0 cm D (6.9 × 2.6 × 3.5 in.)
Dimensions (presentation cradle) 7.2 cm H × 9.4 cm W × 12.2 cm D (2.8 × 3.7 × 4.8 in.)
Weight Scanner 214 g (7.5 oz.); presentation cradle 151 g (5.2 oz.)
Operating temperature Scanner 0 °C to 50 °C (32 °F to 122 °F); presentation cradle 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
Humidity 5% to 95% RH, non-condensing
Drop Designed to withstand multiple drops at 1.5 m (5.0 ft.) to concrete
Tumble Designed to withstand 250 tumbles in a 0.5 m (1.5 ft.) tumbler (1 tumble = 0.5 cycle)
Sealing IP52
Electrostatic discharge DS2278 and CR2278 cradle: EN61000-4-2, ±15 kV air, ±8 kV direct, ±8 kV indirect
Ambient light immunity 0 to 107,600 lux (0 to 10,000 foot candles)
Regulatory
Electrical safety EN 60950-1 2ed + A11 + A1 + A12 + A2:2013; IEC 60950-1 2ed + A1 + A2; UL 60950-1; CAN/CSA-C22.2 No. 60950-1-07
Environmental RoHS EN 50581
LED safety IEC 62471
EMI/RFI EN 55032 (Class B); EN 55024; EN 61000-3-2; EN 61000-3-3; 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 6, Class B
Software
123Scan Programs scanner settings, updates firmware, shows scanned data and prints reports
Scanner SDK Drivers, test utilities and sample code for Windows, Android, iOS and Linux
Scanner Management Service (SMS) Remote management and asset information
Simple Setup Phone-based set-up by scanning the QR code on the scanner
Warranty
Warranty Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.

Optional accessories

  • CR2278 Presentation Cradle (Bluetooth; charges the scanner and holds it for hands-free scanning)
  • Spare battery

Ask for the cradle and any spare battery in the same quotation. Zebra also lists a Micro USB charging accessory; ask us about it.

Specifications from Zebra's published documents, last checked 11 November 2026. Makers can change specifications without notice. About our product information

More detail

More about the Zebra DS2278

Zebra DS2200 Series. Zebra says that if you use its 1D LS2208 scanners today, the DS2200 Series takes the same universal cables, so you keep your existing accessories when you upgrade to a 1D/2D imager.

The DS2278 is the cordless version of the corded DS2208. The DS2208, DS2278 and DS4608 are compared on their own page, linked below.

Scan pattern: area imager. Decoder: 1D, 2D and PDF417. Minimum resolution: 4 mil.

Compare

DS2278 or another model?

Zebra DS2278 compared with similar models
Feature Zebra DS2278 Zebra DS2208 Zebra DS4608
Connection Cordless, Bluetooth 4.0; 2,400 mAh battery Corded Corded
Image sensor 640 × 480 640 × 480 1280 × 800
Smallest QR / Data Matrix 6.7 mil / 6.0 mil 6.7 mil / 6.0 mil QR not published / 5.0 mil (SR), 4.0 mil (HD)
13 mil UPC/EAN range 1.27-36.8 cm 1.27-36.8 cm 0-71.1 cm (SR)
Weight 214 g 161.6 g 161.9 g
Best for Counters and receiving points where a cable gets in the way The same scanner on a cable, with no charging Busier counters, smaller codes and longer reach

Exploring for a different use?

If your job differs from what the DS2278 is built for, these Zebra models may fit it better:

  • Buyers who scan at one fixed counter and want no charging often look at the Zebra DS2208 (the corded DS2200 Series model, with the same 640 × 480 imager).
  • Buyers who want a cordless scanner with a larger sensor and a longer reach often look at the Zebra DS8178 (1,280 × 960 sensor; 13 mil UPC from 0 to 61 cm).
  • Buyers who read very small codes at a fixed counter often look at the Zebra DS4608 (corded; 1280 × 800 sensor).

Not sure which one fits? Tell us how you will use it and we will recommend a model.

Downloads

Datasheet and documents

Questions buyers ask

DS2278 FAQ

What is the price of the Zebra DS2278 in India?

The DS2278 price depends on the cable or accessories you need and the quantity. We do not publish prices: share the model, quantity and city, and we send a written quotation with current pricing and delivery time, replying within one working day.

Corded DS2208 or cordless DS2278?

They share the same imager, barcode list and decode ranges. The corded DS2208 is powered by the PC or POS it plugs into and never needs charging. The cordless DS2278 adds Bluetooth 4.0 and a 2,400 mAh battery, and weighs 214 g against 161.6 g. Choose the DS2278 when staff scan items they cannot lift to the counter, or walk to the goods.

How long does the DS2278 battery last, and how long does it take to charge?

Zebra rates the 2,400 mAh battery for 110,000 scans at 60 scans a minute and 84 hours of operating time per full charge in its simulated checkout test. From empty, a standard USB port gives a 14-hour shift's charge in 4 hours and a full charge in 17 hours; a BC1.2 USB port, 1 hour and 5 hours. The cradle charges the scanner while it is in use, and charging then takes longer.

How far from the cradle can staff scan?

Zebra gives a minimum of 10 m and up to 100 m in direct line of sight in open air when the DS2278 is paired with the CR2278 cradle, and says environmental factors may affect the result. Walls, racks and shutters shorten the range, so tell us the layout when you ask for a quote.

How does the DS2278 connect to our billing PC, tablet or phone?

Two ways. It pairs directly with a Bluetooth PC, tablet or smartphone using Zebra's Scan-to-Connect, on the Serial Port or HID (keyboard) profile. Or it pairs with the CR2278 presentation cradle, which connects to the PC or POS; Zebra lists USB, RS232, keyboard wedge and IBM 46XX over RS485 as host interfaces. Tell us your billing software and terminal, and we quote the matching cradle connection.

Can the DS2278 read QR codes and codes on phone screens?

Yes. It is a 2D imager that reads QR Code, Data Matrix, PDF417 and Aztec as well as 1D barcodes, and Zebra's DS2278 reference guide says reading barcodes on mobile phones needs no special mode. It sends the decoded text to your software; it does not take or confirm a payment.

DS2278 or DS8178: which cordless Zebra scanner?

The DS2278 has a 640 × 480 sensor, reads a 13 mil UPC code from 1.27 to 36.8 cm and is designed for 1.5 m drops. The DS8178 has a 1,280 × 960 sensor, reads the same code from 0 to 61 cm and is designed for 1.8 m drops. The DS2278 suits steady billing and receiving; the DS8178 suits faster counters and poorer labels.

Can Allmark install the DS2278 and connect it to our software?

Yes. We install the DS2278 at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.

Get a written DS2278 quote, set up for your software

Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
